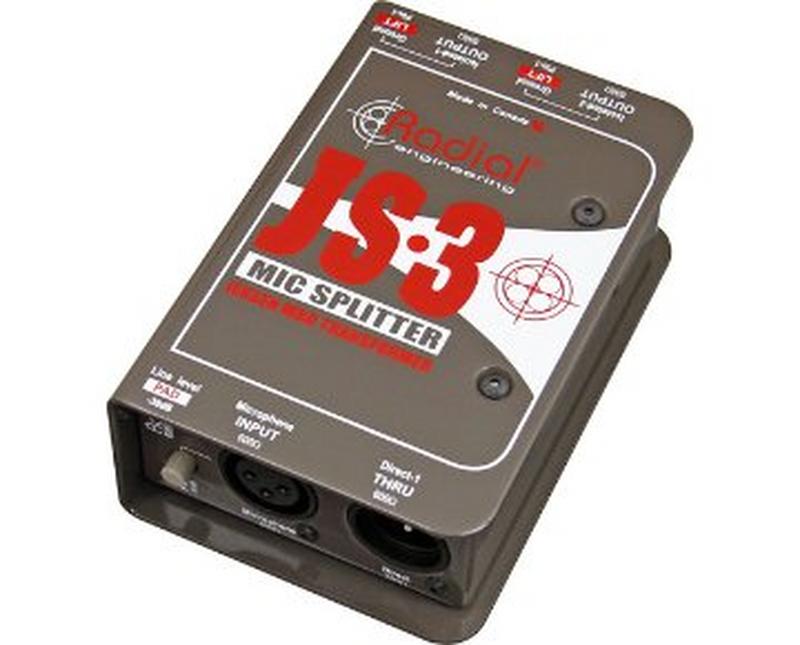

Radial JS3
Radial JS3

Radial JS3

MPN: R800 1023
Our Ref #: JS3
Radial

Radial (131) Signal management

View other products

Mic splitter, passive, 1 input, 1 direct out & 2 Jensen isolated outputs
Compare
Help
Returns:

Returns are accepted within five (5) days from the invoice date, provided the Goods are in their original condition, unused, and returned with all original packaging, accessories, and documentation. All returns are subject to pre-approval, inspection, and final acceptance by the Seller.

Terms:

Sales terms and conditions apply. Click here

Delivery terms and conditions apply. Click here

Shop with confidence

Warranty claims

Warranty claims

If your product(s) becomes defective and develops a fault due to design or manufacturing fault we are here to help.

Mic splitter, passive, 1 input, 1 direct out & 2 Jensen isolated outputs

Description

The Radial JS3 is a high-performance audio utility built into a rugged 14-gauge steel enclosure designed to survive heavy stage use. At its core, the device utilizes a world-class Jensen JT-MB-CPC transformer. This premium nickel-laminated core transformer delivers an exceptionally wide frequency response with near-zero phase distortion and ultra-low harmonic distortion.Because it is a passive device, it requires no external power or phantom power to operate. The unit features one direct throughput route (which passes phantom power from the FOH console back to the microphone) and two isolated outputs. The 100% transformer isolation provides an extraordinary common-mode noise rejection (CMR) rating of greater than -90dB.

Key Features

  • Jensen Transformer Equipped: Nickel-laminated core transformer providing transparent audio transfer and ultra-low harmonic distortion
  • 3-Way Signal Splitting: Splits a single balanced XLR microphone source into three individual destinations (1 Direct Out
  • Excellent Hum Elimination: Achieves better than -90dB common-mode noise rejection (CMR) to eliminate ground-loop hum and buzz
  • Passive Operation: Requires no battery or external power source, offering dependable plug-and-play functionality
  • Input Pad: Switchable -30dB pad to accommodate high-output line-level signals without overloading the transformer
