Q-SYS MP-MFC-NA-WH
Q-SYS MP-MFC-NA-WH

Q-SYS MP-MFC-NA-WH

MPN: MP-MFC-NA-WH
Our Ref #: MP-MFC-NA-WH
Q-SYS

Q-SYS (253) AV integration

View other products

Decora® style multi-function controller for use with MP-M zone mixers, provides zone Volume and Source Select as well as Preset Recall capability. Fits standard 1-gang NEMA wall boxes. Color - White.
Compare
Help
Returns:

Returns are accepted within five (5) days from the invoice date, provided the Goods are in their original condition, unused, and returned with all original packaging, accessories, and documentation. All returns are subject to pre-approval, inspection, and final acceptance by the Seller.

Terms:

Sales terms and conditions apply. Click here

Delivery terms and conditions apply. Click here

Shop with confidence

Warranty claims

Warranty claims

If your product(s) becomes defective and develops a fault due to design or manufacturing fault we are here to help.

Decora® style multi-function controller for use with MP-M zone mixers, provides zone Volume and Source Select as well as Preset Recall capability. Fits standard 1-gang NEMA wall boxes. Color - White.

Description

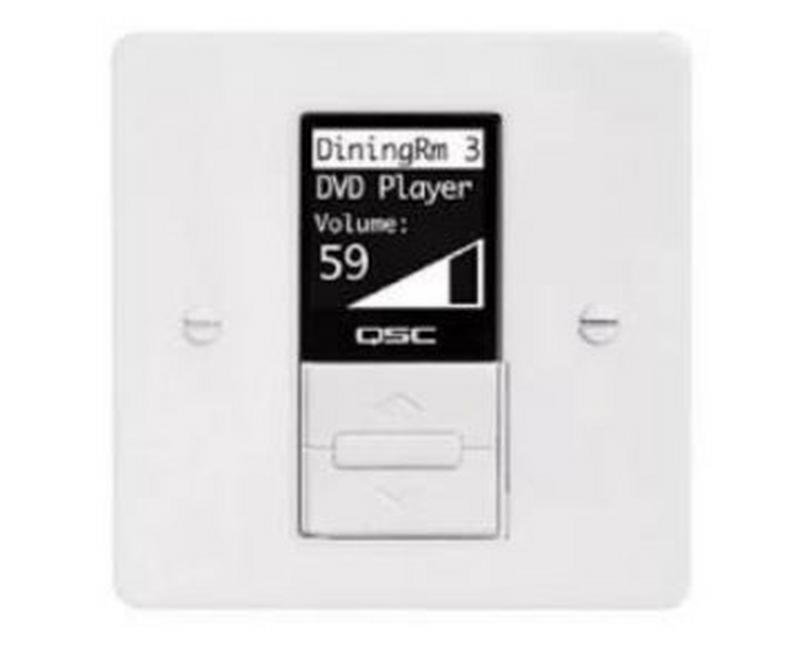

The Q-SYS MP-MFC-NA-WH is an intuitive wall-mounted control peripheral built for the Q-SYS MP-M Series music and paging mixers. System designers can configure it to offer end-users customized control access—ranging from simple volume adjustments to comprehensive source selection and scene presets—while blocking unwanted access to broader system settings. It features a clean Decora®-style aesthetic that fits standard 1-gang NEMA wall boxes, a crisp monochrome graphic display, and a three-button interface. Up to four units can be daisy-chained per line, with a maximum capacity of eight controllers per MP-M mixer.

Key Features

  • Decora® Form Factor: Fits standard 1-gang North American (NA) wall boxes and blends cleanly with standard architectural wall plates
  • Adjust zone volume, select input sources, or recall saved presets/scenes
  • Clear Visual Display: Includes a sharp monochrome graphic screen (128 x 128 pixels / approx. 27 mm x 26 mm) to label active options and levels
  • Simple 3-Button Interface: Uses straightforward increment, decrement, and select buttons for easy operation by non-technical staff
  • Daisy-Chain Topology: Supports up to 4 controllers daisy-chained per port (using dual RJ45 connectors) up to 250 meters (820 feet) total cable run per line
  • Accommodates up to 8 total controllers on a single MP-M Series mixer
  • App-Based Configuration: Easily configured using the software platform designed for the MP-M line
