Q-SYS AD-S10T-BK
Q-SYS AD-S10T-BK Q-SYS AD-S10T-BK

Q-SYS AD-S10T-BK

MPN: AD-S10T-BK
Our Ref #: AD-S10T-BK
Q-SYS

Q-SYS (254) AV integration

View other products

10" Two-way surface speaker, 70/100V transformer w
Compare
Help
Returns:

Returns are accepted within five (5) days from the invoice date, provided the Goods are in their original condition, unused, and returned with all original packaging, accessories, and documentation. All returns are subject to pre-approval, inspection, and final acceptance by the Seller.

Terms:

Sales terms and conditions apply. Click here

Delivery terms and conditions apply. Click here

Shop with confidence

Warranty claims

Warranty claims

If your product(s) becomes defective and develops a fault due to design or manufacturing fault we are here to help.

10" Two-way surface speaker, 70/100V transformer w

Description

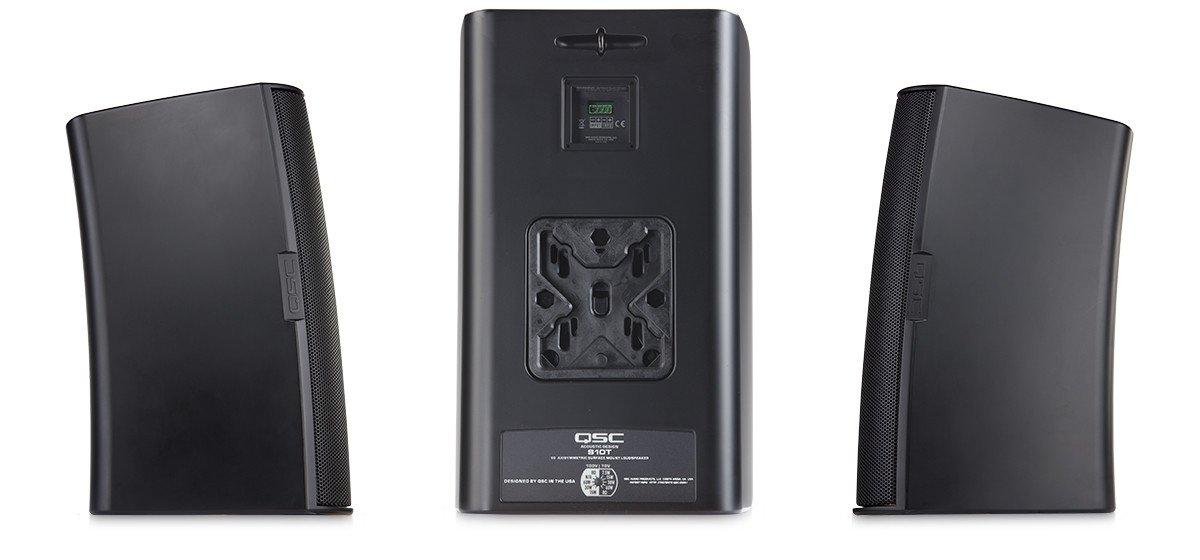

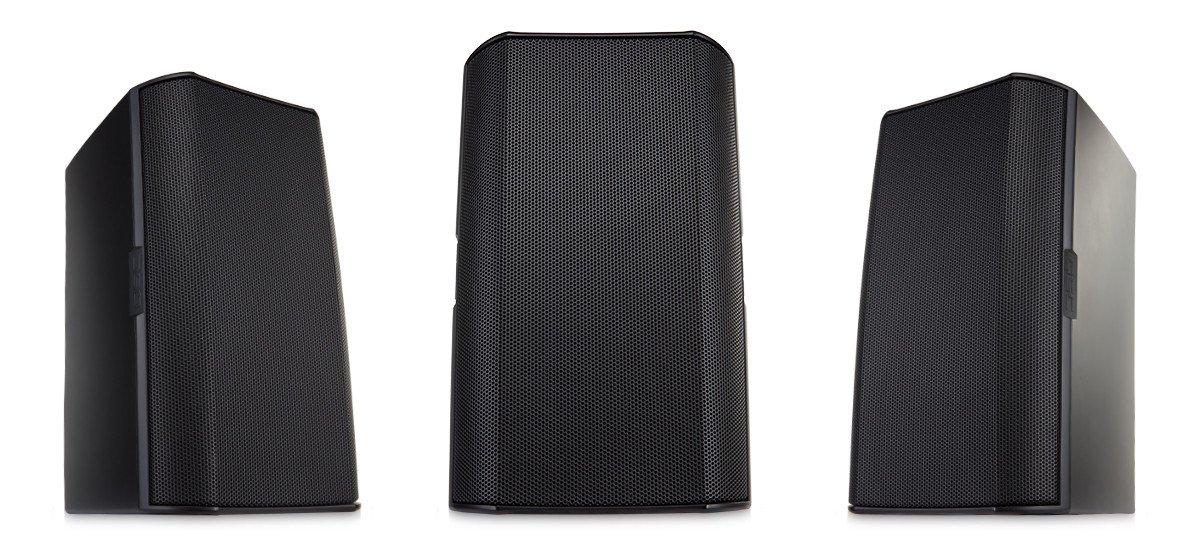

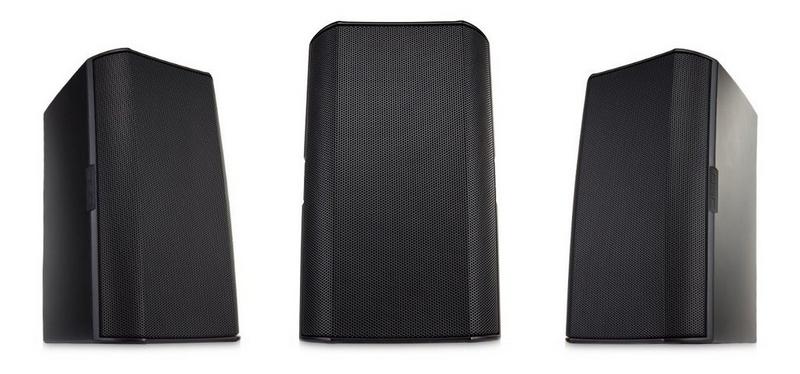

The AcousticDesign Series AD-S10T-BK is a high-output, weather-resistant surface loudspeaker built for demanding commercial audio installations. It houses a 10-inch weather-treated paper cone woofer and a 1-inch exit (1.4-inch voice coil) compression driver. Integrated Directivity Matched Transition (DMT) technology matches the high-frequency dispersion to the woofer coverage angle, yielding a smooth 90° conical audio footprint. Housed in a rugged painted ABS polymer enclosure with a powder-coated aluminum grille, it includes a sealed input panel cover with a 4-pole Euroblock connector for loop-thru wiring. The included X-Mount system allows fast deployment at precise angles without future slippage.

Technical Specification

Technical Specification
Indoor/OutdoorIndoor / Outdoor
Power Rating100
Powered/PassivePassive

Key Features

  • 10" Weather-Treated Woofer paired with a 1.4" voice-coil compression driver
  • 90° Conical DMT Coverage for uniform sound distribution
  • 70/100V Low-Saturation Transformers featuring an 8-ohm bypass option (100W, 50W, 25W, 12
  • High Output Performance producing up to 122 dB peak SPL
  • X-Mount System included for secure horizontal, vertical, wall, or ceiling mounting
  • IP-54 Rated for dust and splash protection in indoor or outdoor environments
  • Q-SYS Intrinsic Correction available via Q-SYS Ecosystem processing or CXD amplifiers for advanced voicing filter sets
