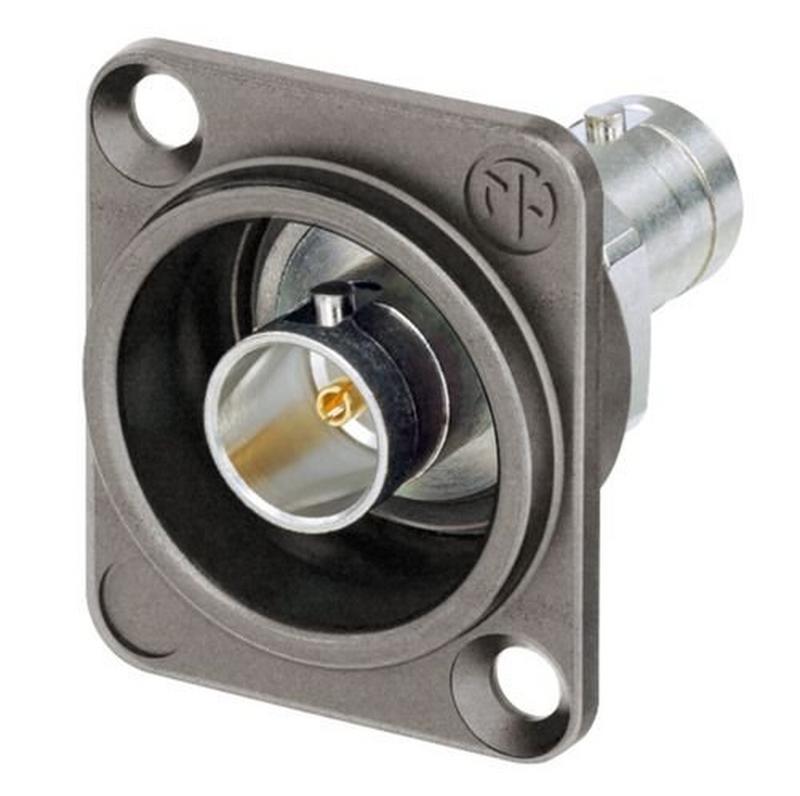

Neutrik NBB75DFGX
Key USP
| Cable Type | BNC |
|---|
Returns are accepted within five (5) days from the invoice date, provided the Goods are in their original condition, unused, and returned with all original packaging, accessories, and documentation. All returns are subject to pre-approval, inspection, and final acceptance by the Seller.
Sales terms and conditions apply. Click here
Delivery terms and conditions apply. Click here
Shop with confidence
Description
Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing
Optimized Return Loss
Due to optimised insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. For more details see Neutrik UHD BNC White Paper.

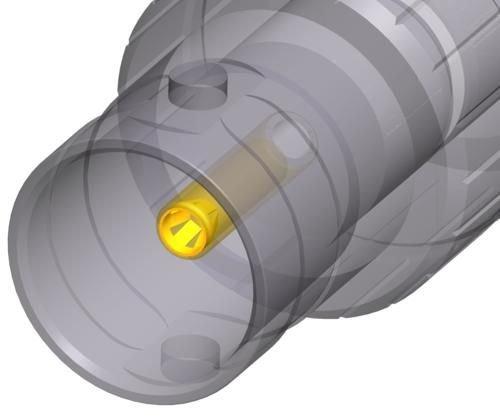

New cage type contact
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
Technical Specification
| Colour | White |
|---|---|
| Cable Type | BNC |
| Operating Temperature | -30 - 85 °C |
Key Features
- Optimised gold plated cage type centre contact for UHD signals as 4K or 8K
- Swiss antraloy plating
- Grounded panel mount
- Standard D-shape housing provides flush mounting and protection from damage
- Colour coding possible
- Fully compatible with conventional BNC cable connectors
