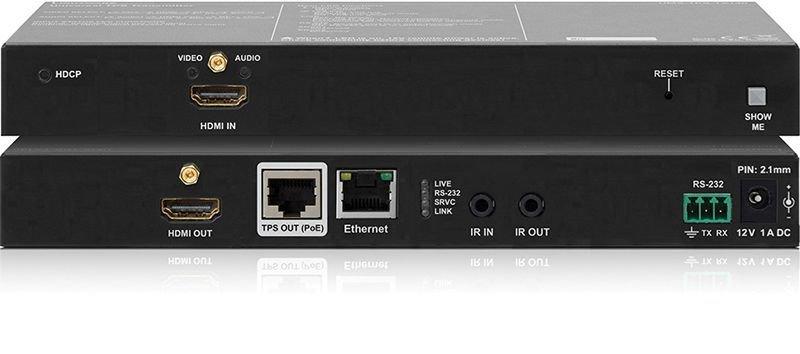

Lightware HDMI-TPS-TX210
MPN: 91540017
Our Ref #: HDMI-TPS-TX210
TX, HDMI, 2 x RJ45, HDCP, Phoenix, 3.5 mm, DC, PoE, 12/48V, 8W
Returns:
Returns are accepted within five (5) days from the invoice date, provided the Goods are in their original condition, unused, and returned with all original packaging, accessories, and documentation. All returns are subject to pre-approval, inspection, and final acceptance by the Seller.
Terms:
Sales terms and conditions apply. Click here
Delivery terms and conditions apply. Click here
Shop with confidence
TX, HDMI, 2 x RJ45, HDCP, Phoenix, 3.5 mm, DC, PoE, 12/48V, 8W
Description
TPS (HDBaseT) extender for HDMI with local monitor out
HDMI-TPS-TX210 has the same features and capabilities as HDMI-TPS-TX220, but without GPIO control port and local audio embedding.
The HDMI-TPS-TX220 is a flagship model in the Lightware TPS (HDBase-TTM Transmitter) product family. The device can transmit universal video, audio and control up to a 170 meter distance over a single CAT. The extender was designed to handle HDMI 1.4 digital video signals and analog stereo audio from local inputs or HDMI Embedded Audio up to 8 Channel PCM or HBR audio. It also handles HDCP encryption. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming the system requirements. Remote powering is available through the single CAT 5e - CAT 7 cable, but local power supply can also be used. All devices can be mounted on a rack shelf or used standalone. HDMI-TPS-TX220 is compatible with both HDBaseT extenders and matrix switchers.
Highlighted features
- Built-in Event Manager automation feature
- 1920x1080@120Hz/4:4:4, 4096x2048@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- Ethernet extension (100 Mbps)
- Command injection on RS-232 and IR ports
- Bi-directional RS-232 and IR extension (pass-through and control)
- Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
The HDMI-TPS-TX210 is a compact video, audio and control transmitter for use over a single CAT cable up to 170 meter distance for ever-changing environments such as small board rooms and classrooms. The extender was designed to handle HDMI1.4 digital video, embedded audio and control signals.
The HDMI-TPS-TX210 handles HDCP encryption. Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conformto the system requirements. The unit offers bi-directional and transparent IR, RS232 and Ethernet transmission. Furthermore the RS232 and IR connection supports command injection. Remote powering is available through the single CAT 5e ... CAT 7 cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used in standalone formats. Due to Lightware’s attentive design the HDMI-TPS-TX210 is compatible with both the HDBaseT extenders and matrix switchers.
Applications
- Small classrooms
- Conference rooms, meeting rooms
- Control rooms
- Home cinemas
Compatible products
- MX Series matrix frames with MX-TPS-IB or MX-TPS2-IB
- HDMI-TPS-RX90
- DVI-HDCP-TPS-RX95
- HDMI-TPS-RX95
- TPS-PI-1P1
- MMX6x2-HT200
- MMX6x2-HT210
- MMX6x2-HT220
HDMI-TPS-TX210 has the same features and capabilities as HDMI-TPS-TX220, but without GPIO control port and local audio embedding.
The HDMI-TPS-TX220 is a flagship model in the Lightware TPS (HDBase-TTM Transmitter) product family. The device can transmit universal video, audio and control up to a 170 meter distance over a single CAT. The extender was designed to handle HDMI 1.4 digital video signals and analog stereo audio from local inputs or HDMI Embedded Audio up to 8 Channel PCM or HBR audio. It also handles HDCP encryption. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming the system requirements. Remote powering is available through the single CAT 5e - CAT 7 cable, but local power supply can also be used. All devices can be mounted on a rack shelf or used standalone. HDMI-TPS-TX220 is compatible with both HDBaseT extenders and matrix switchers.
Highlighted features
- Built-in Event Manager automation feature
- 1920x1080@120Hz/4:4:4, 4096x2048@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- Ethernet extension (100 Mbps)
- Command injection on RS-232 and IR ports
- Bi-directional RS-232 and IR extension (pass-through and control)
- Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
The HDMI-TPS-TX210 is a compact video, audio and control transmitter for use over a single CAT cable up to 170 meter distance for ever-changing environments such as small board rooms and classrooms. The extender was designed to handle HDMI1.4 digital video, embedded audio and control signals.
The HDMI-TPS-TX210 handles HDCP encryption. Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conformto the system requirements. The unit offers bi-directional and transparent IR, RS232 and Ethernet transmission. Furthermore the RS232 and IR connection supports command injection. Remote powering is available through the single CAT 5e ... CAT 7 cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used in standalone formats. Due to Lightware’s attentive design the HDMI-TPS-TX210 is compatible with both the HDBaseT extenders and matrix switchers.
Applications
- Small classrooms
- Conference rooms, meeting rooms
- Control rooms
- Home cinemas
Compatible products
- MX Series matrix frames with MX-TPS-IB or MX-TPS2-IB
- HDMI-TPS-RX90
- DVI-HDCP-TPS-RX95
- HDMI-TPS-RX95
- TPS-PI-1P1
- MMX6x2-HT200
- MMX6x2-HT210
- MMX6x2-HT220
Key Features
- Built-in Event Manager automation feature
- Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
- 1920x1080@120Hz/4: 4: 4, 4096x2048@30Hz/4: 4: 4 or 60Hz/4: 2: 0 maximum resolutions (300MHz)
- HDCP enable/disable function on input
- HDCP 1.4 compliant
- Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
- No signal latency, zero frame delay
- TPS link quality and cable length monitoring
- Dual output with built-in distribution amplifier
- Firmware upgrade through Ethernet
- Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Extension distance up to 170 metres (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
- HDBaseT compatible
- Ethernet extension (100 Mbps)
- Advanced EDID Management
- Pixel Accurate Reclocking
- Command injection on RS-232 and IR ports
- Device control via Ethernet (TCP/IP) and RS-232
- Multiple TCP/IP connections
- Intuitive control software for device configuration
- Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4: 4: 4 or @60Hz YUV 4: 2: 0, up to 9 Gbps)
- No video compression
- Built-in video test pattern generator
- Bi-directional RS-232 and IR extension (pass-through)
- Bi-directional RS-232 and IR extension (pass-through and control)
- Twist-and-lock DC power connector
- Frame Detector (analyze detailed video timings)
- External universal power adaptor
- Mounting oCan be remote powered through CATx cable (PoE PD)
- HDMI 1.3, HDCP 1.1 and DVI 1.0 compliantptions for rack, furniture or trussExtends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
