Lightware HDMI-TPS-TX220
MPN: 91540011
Our Ref #: HDMI-TPS-TX220
TX, HDMI, 2 x RJ45, HDCP, Phoenix, 3.5 mm, DC, PoE, 12/48V, 8.5W
Loading basket options...
Returns:
Returns are accepted within five (5) days from the invoice date, provided the Goods are in their original condition, unused, and returned with all original packaging, accessories, and documentation. All returns are subject to pre-approval, inspection, and final acceptance by the Seller.
Terms:
Sales terms and conditions apply. Click here
Delivery terms and conditions apply. Click here
Shop with confidence
TX, HDMI, 2 x RJ45, HDCP, Phoenix, 3.5 mm, DC, PoE, 12/48V, 8.5W
Description

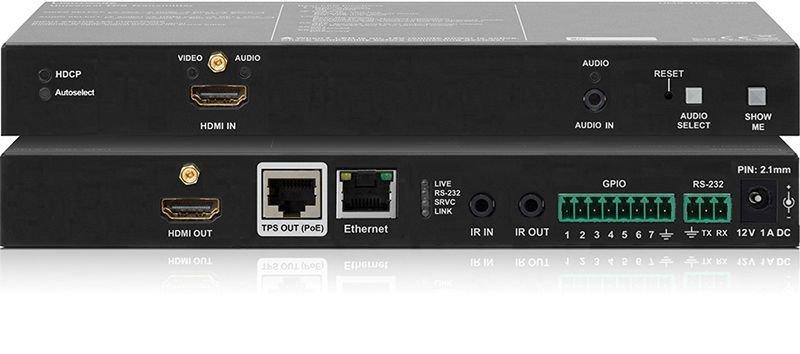

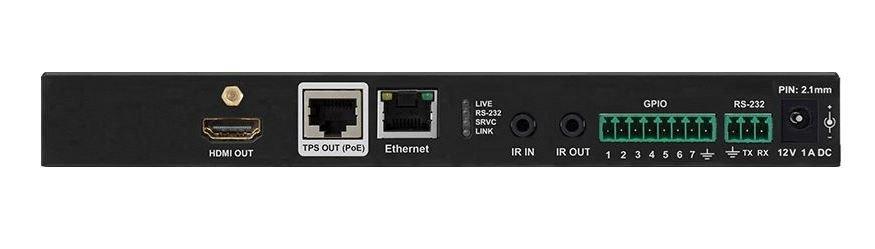

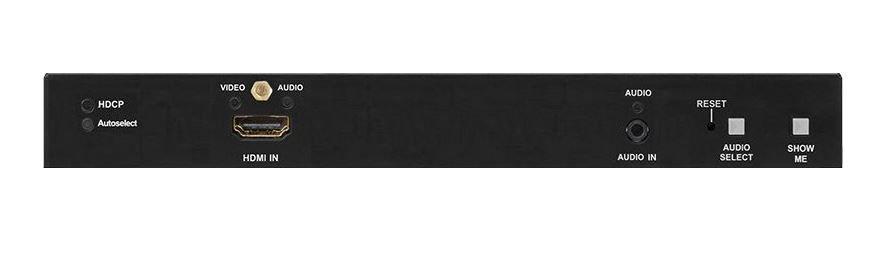

TPS (HDBaseT) extender for HDMI with local monitor out
