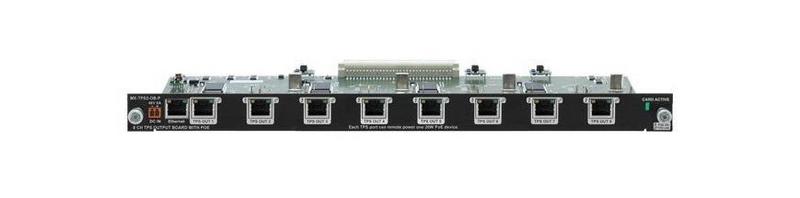

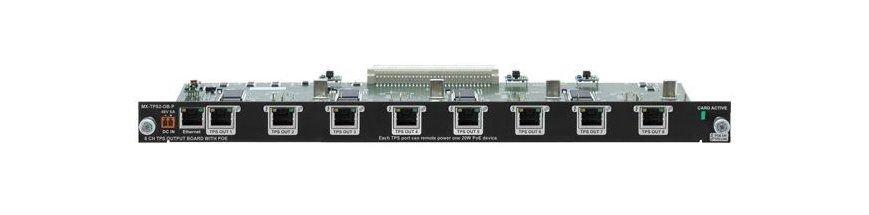

Lightware MX-TPS2-OB-P
Returns are accepted within five (5) days from the invoice date, provided the Goods are in their original condition, unused, and returned with all original packaging, accessories, and documentation. All returns are subject to pre-approval, inspection, and final acceptance by the Seller.
Sales terms and conditions apply. Click here
Delivery terms and conditions apply. Click here
Shop with confidence
Description
MX-TPS2-OB-P the 8 channel twisted pair output board provides HDMI 1.4, audio, Ethernet and RS-232 transmission on a single CAT5/6/7 cable up to 100m in HDBaseTTM and 170m distance in Long reach mode.
MX‑TPS2‑OB‑P is an 8 channel twisted pair output board which provides HDMI 1.4, audio, Ethernet and RS‑232 transmission on a single CAT5/6/7 cable up to 100m in HDBaseTTM and 170m distance in Long reach mode (maximal resolution is Full HD 1080p in Long reach mode). Resolutions up to 4K and 48‑bit colour depth are handled with all standard audio formats as well as 120Hz 3D signals. The board offers bi‑directional RS‑232 and Ethernet transmission (each board has a 10/100 uplink connector for the Ethernet network connection) and remote powering option for the TPS extenders with the PoE add‑on. The built-in PoE injector function requires the supplied PSU-48vp external power source to be connected directly to the board. The MX‑TPS2‑OB‑P also handles HDMI embedded audio. The board is compatible with deep colour, Dolby TrueHD and DTS‑HD audio and features PCM audio sample rate conversion. Advanced professional functions such as HDCP enable/disable mode, Pixel Accurate Reclocking, Advanced EDID Management and Frame Detector are also integrated.
Key Features
- 1920x1080@120Hz/4: 4: 4, 4096x2048@30Hz/4: 4: 4 or 60Hz/4: 2: 0 maximum resolutions (300MHz)
- Built-in PoE injector* for remote powering extenders
- Optional digital or analog audio embedding and de-embedding add-ons
- Extension distance up to 170 metres (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
- Frame Detector (analyze detailed video timings)
- Built-in PoE power injector* for remote powering extenders
- TPS link quality and cable length monitoring
- HDBaseT compatible
- Ethernet extension (100 Mbps)
- Advanced EDID Management
- Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4: 4: 4 or @60Hz YUV 4: 2: 0, up to 9 Gbps)
- Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
- Supports deep colour signals (24/30/36 bit RGB/YCbCr 4: 4: 4)
- Pixel Accurate Reclocking
- No video compression
- Bi-directional RS-232 extension (pass-through)
- HDCP 1.4 compliant
- Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
- Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Built-in video test pattern generator
- No signal latency, zero frame delay
