Lightware MX-TPS-OB
MPN: 91130027
Our Ref #: MX-TPS-OB
TPS Out, 4K, 3D, HDCP, EDID, 855 g
Returns:
Returns are accepted within five (5) days from the invoice date, provided the Goods are in their original condition, unused, and returned with all original packaging, accessories, and documentation. All returns are subject to pre-approval, inspection, and final acceptance by the Seller.
Terms:
Sales terms and conditions apply. Click here
Delivery terms and conditions apply. Click here
Shop with confidence
TPS Out, 4K, 3D, HDCP, EDID, 855 g
Description

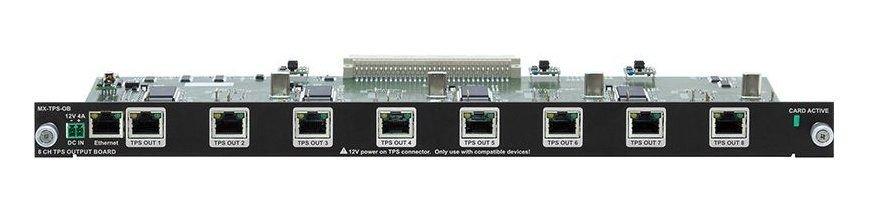

TPS output board for HDMI, Ethernet, audio and control
MX‑TPS‑OB Output Board is a long‑distance single CAT HDBaseTTM solution with localized audio embedding and de‑embedding points.
MX-TPS2-OB-P the 8 channel twisted pair output board provides HDMI 1.4, audio, Ethernet
and RS-232 transmission on a single CAT5/6/7 cable up to 100m in HDBaseTTM and 170m
distance in Long reach mode (maximal resolution is Full HD 1080p in Long reach mode).
Resolutions up to 4K and 48-bit colour depth are handled with all standard audio formats as
well as 120Hz 3D signals. The board offers bi-directional RS-232 and Ethernet transmission
(each board has a 10/100 uplink connector for the Ethernet network connection) and remote
powering option for the TPS extenders available with the PoE add-on. The output board is
available with audio add-ons: digital S/PDIF or analog stereo connectors are available for
advanced audio functions (HDMI embedded audio signals are managed by the board).
The MX-TPS2-OB-P without the digital or analog audio option also handles HDMI embedded
audio. The board is compatible with deep colour, Dolby TrueHD and DTS-HD audio and features
PCM audio sample rate conversion. Advanced professional functions such as HDCP enable/
disable mode, Pixel Accurate Reclocking, Advanced EDID Management and Frame Detector
are integrated providing the highest level of setup and usage.
Digital S/PDIF Audio Option:
- S/PDIF breakout for every port
- Bi-directional configurable S/PDIF connectors: audio can be de-embedded from the HDMI signals or audio can be embedded (or replaced) to the HDMI signal
- PoE compatible
- Remote powering on/off switching
- Status feedback
Analog Stereo Audio Option:
- Bi-directional configurable analog stereo port with 5-pole Phoenix connector
- Stereo PCM audio up to 96 kHz can be de-embedded from the HDMI signals
- Digitized audio (PCM 48 kHz) can be embedded (or replaced) to the HDMI signal
- Volume, gain control
- PoE compatible
- Remote powering on/off switching
- Status feedback
MX‑TPS‑OB Output Board is a long‑distance single CAT HDBaseTTM solution with localized audio embedding and de‑embedding points.
MX-TPS2-OB-P the 8 channel twisted pair output board provides HDMI 1.4, audio, Ethernet
and RS-232 transmission on a single CAT5/6/7 cable up to 100m in HDBaseTTM and 170m
distance in Long reach mode (maximal resolution is Full HD 1080p in Long reach mode).
Resolutions up to 4K and 48-bit colour depth are handled with all standard audio formats as
well as 120Hz 3D signals. The board offers bi-directional RS-232 and Ethernet transmission
(each board has a 10/100 uplink connector for the Ethernet network connection) and remote
powering option for the TPS extenders available with the PoE add-on. The output board is
available with audio add-ons: digital S/PDIF or analog stereo connectors are available for
advanced audio functions (HDMI embedded audio signals are managed by the board).
The MX-TPS2-OB-P without the digital or analog audio option also handles HDMI embedded
audio. The board is compatible with deep colour, Dolby TrueHD and DTS-HD audio and features
PCM audio sample rate conversion. Advanced professional functions such as HDCP enable/
disable mode, Pixel Accurate Reclocking, Advanced EDID Management and Frame Detector
are integrated providing the highest level of setup and usage.
Digital S/PDIF Audio Option:
- S/PDIF breakout for every port
- Bi-directional configurable S/PDIF connectors: audio can be de-embedded from the HDMI signals or audio can be embedded (or replaced) to the HDMI signal
- PoE compatible
- Remote powering on/off switching
- Status feedback
Analog Stereo Audio Option:
- Bi-directional configurable analog stereo port with 5-pole Phoenix connector
- Stereo PCM audio up to 96 kHz can be de-embedded from the HDMI signals
- Digitized audio (PCM 48 kHz) can be embedded (or replaced) to the HDMI signal
- Volume, gain control
- PoE compatible
- Remote powering on/off switching
- Status feedback
Key Features
- 1920x1080@120Hz/4: 4: 4, 4096x2048@30Hz/4: 4: 4 or 60Hz/4: 2: 0 maximum resolutions (300MHz)
- Optional digital or analog audio embedding and de-embedding add-ons
- Adjustable analog audio settings (volume, gain, balance)
- Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 over one CAT5/6/7 cable
- Extension distance up to 170 metres (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
- Frame Detector (analyze detailed video timings)
- Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
- TPS link quality and cable length monitoring
- HDBaseT compatible
- Ethernet extension (100 Mbps)
- HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
- Advanced EDID Management
- Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4: 4: 4 or @60Hz YUV 4: 2: 0, up to 9 Gbps)
- Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
- Supports deep colour signals (24/30/36 bit RGB/YCbCr 4: 4: 4)
- Pixel Accurate Reclocking
- No video compression
- Bi-directional RS-232 extension (pass-through)
- HDCP 1.4 compliant
- Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
- Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Built-in video test pattern generator
- No signal latency, zero frame delay
