Description

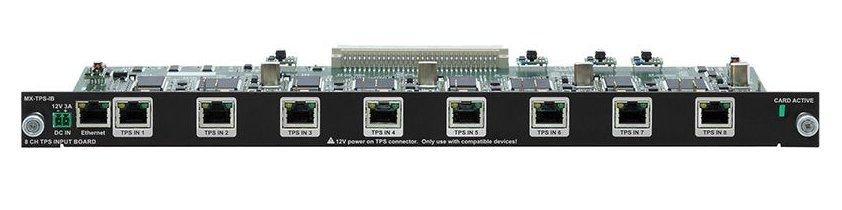

MX‑TPS‑IB Input Board is a long distance single CAT HDBaseTTM solution with.
MX-TPS-IB is an 8 channel twisted pair input board providing HDMI 1.4, audio, Ethernet and RS-232 extension on a single CAT5/6/7 cable up to 100m in HDBaseTTM and 180m distance in Long reach mode (maximal resolution is Full HD 1080p in Long reach mode). Resolutions up to 4K and 48-bit colour depth are handled with all standard audio formats as well as 120Hz 3D signals. The board offers bi-directional RS-232 and Ethernet transmission (each board has a 10/100 uplink connector for the Ethernet network connection) and remote powering option for the TPS 95 series extenders. The built-in PoE injector function requires the supplied PSU-12vp external power source to be connected directly to the board. The input board is available with audio option connectors: digital S/PDIF or analog stereo connectors are available for advanced audio functions (HDMI embedded audio signals are managed by the board). The MX-TPS-IB without the digital or analog audio option also handles HDMI embedded audio. Advanced professional functions such as HDCP enable/disable mode, Pixel Accurate Reclocking, Advanced EDID Management and Frame Detector are also.The board is compatible with deep colour, Dolby TrueHD and DTS-HD audio and features PCM audio sample rate conversion.
Key Features
- 1920x1080@120Hz/4: 4: 4, 4096x2048@30Hz/4: 4: 4 or 60Hz/4: 2: 0 maximum resolutions (300MHz)
- Optional digital or analog audio embedding and de-embedding add-ons
- Adjustable analog audio settings (volume, gain, balance)
- Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 over one CAT5/6/7 cable
- Extension distance up to 170 metres (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
- Frame Detector (analyze detailed video timings)
- Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
- TPS link quality and cable length monitoring
- HDCP enable/disable function on input
- HDBaseT compatible
- Ethernet extension (100 Mbps)
- HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
- Advanced EDID Management
- Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4: 4: 4 or @60Hz YUV 4: 2: 0, up to 9 Gbps)
- Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
- Supports deep colour signals (24/30/36 bit RGB/YCbCr 4: 4: 4)
- Pixel Accurate Reclocking
- No video compression
- Bi-directional RS-232 extension (pass-through)
- HDCP 1.4 compliant
- Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
- Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Built-in video test pattern generator
- No signal latency, zero frame delay
