Description

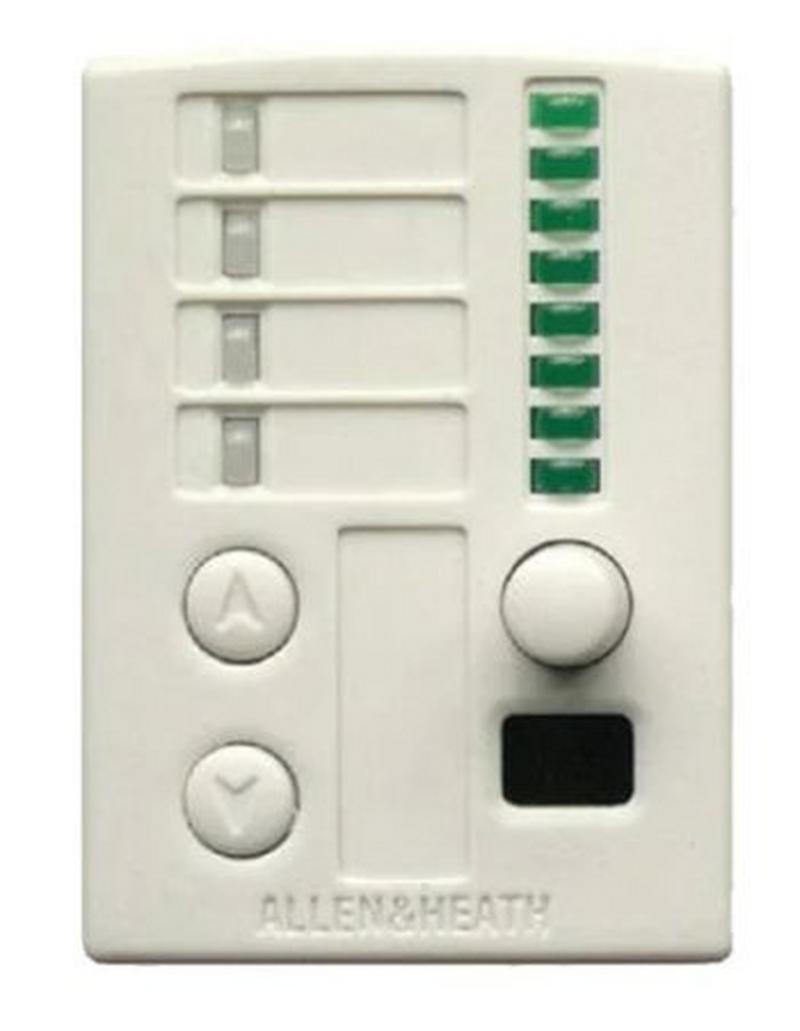

The PL-14 is an ‘intelligent’ remote controller for use with the Allen & Heath GR3 & 4 audio zone mixers. It provides the non-technical operator with local control of the music source selection and/or audio level. Up to two controllers may be connected, just one, one for each zone, or a single unit to simultaneously control both zones. A menu of setup options allows the installer to configure its function to match the specific requirements of each application. Additional switches may be wired for room combining situations and to disable the controller when the settings should not be changed.
The optional PL-5 hand held infra-red remote controller adds wireless control, and additional features including the store and recall of up to 4 source/level pre-sets. The PL-14 can be mounted into a single unit wall box using the standard face plate provided, or furniture mounted using the cutting template details given here. It interfaces with the GR3/4 using standard CAT5 cables. The second controller daisy chains with the first for convenient single run cabling. Space is provided on the panel for custom labelling.
Key Features
- Intuitive Controls: Features a rotary volume control (adjustable in 32 steps) and four illuminated source selection switches
- Zone Management: Manages one or two audio zones; you can use one PL-14 per zone or a single unit to control both
- Easy Cabling: Plugs directly into the host mixer via standard, readily available Cat5e cabling
- Daisy-Chaining: Features an RJ45 link-through connector, letting you add up to two controllers in a system
- Wireless Option: Compatible with the optional PL-5 handheld infra-red remote, which unlocks preset storage/recall and wireless volume adjustments
