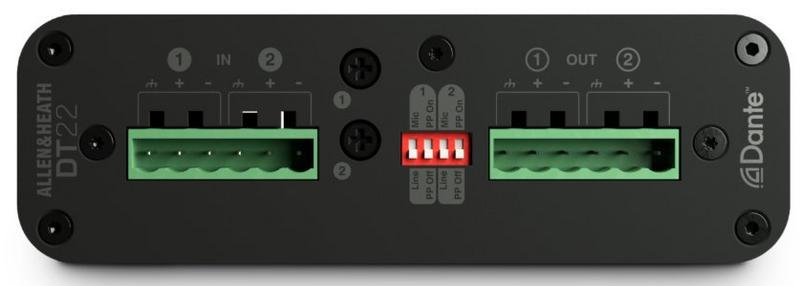

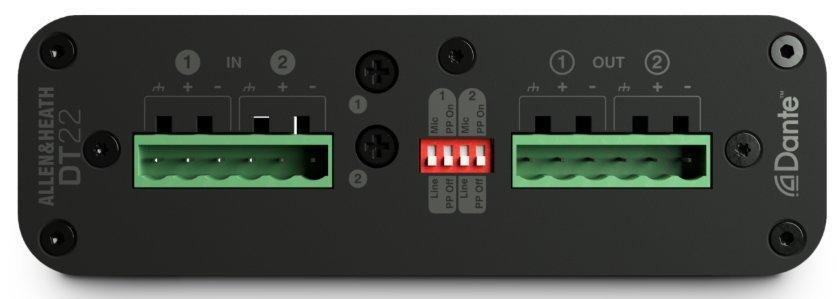

Allen & Heath DT22-M/X
Returns are accepted within five (5) days from the invoice date, provided the Goods are in their original condition, unused, and returned with all original packaging, accessories, and documentation. All returns are subject to pre-approval, inspection, and final acceptance by the Seller.
Sales terms and conditions apply. Click here
Delivery terms and conditions apply. Click here
Shop with confidence
Description
The compact and portable DT22 enables simple integration of Phoenix / Euroblock equipped hardware into a Dante network. Two inputs and two outputs make it suitable for a range of fixed install scenarios. DT22 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs and 2 line outputs – via standard Phoenix / Euroblock connectors – wherever you need to get analogue audio in and out of a Dante network. It can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems. The unit can be PoE powered or powered via a DC 12V supply.
DT22 is designed for fixed installation and can be easily mounted under a meeting table, for example in a breakout room or huddle space, or mounted under a podium for local mic/PC and speaker connection. Surface mount ears are included with the DT22. An optional rack-mount kit is available for installation of up to two DT22 units in a 1U 19″ slot to interface with analogue equipment such as an AV switcher. The DT22 is compatible with any of our digital mixers that can be fitted with a Dante card. It is also compatible with Dante equipped 3rd party hardware.
Key Features
- Dante & AES67 Integration: Acts as a 2 × 2 Dante I/O interface, seamlessly bridging standard analogue audio into Dante or AES67 networks
- Analogue I/O via Phoenix Connections: Features two balanced mic/line inputs and two balanced line outputs using secure Phoenix (Euroblock) connectors, making it ideal for permanent or fixed AV installations
- Switchable Sample Rates: Supports high-quality audio routing at both 48 kHz and 96 kHz
- Mic/Line Preamps with Phantom Power: Provides local analogue gain control (0 to +55dB), a mic/line switch, and switchable +48V phantom power for the inputs
- Power over Ethernet (PoE): Can be powered directly via an Ethernet cable using standard PoE, or through an optional 12V DC power supply
