Description

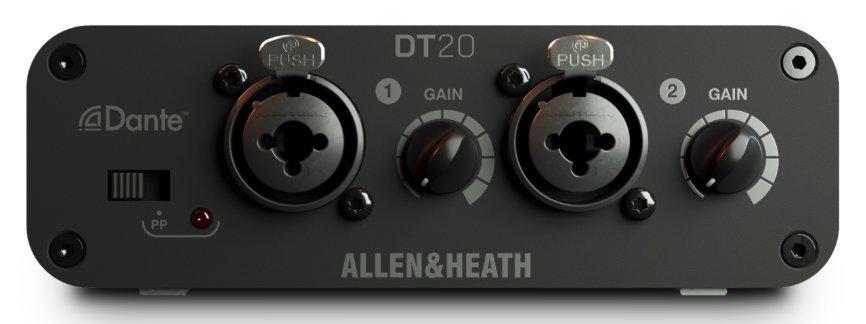

DT20 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analogue audio into a Dante network. Ideal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems. The unit can be PoE powered or powered via a DC 12V supply. Two versions are available: the standard DT20 with power supply and rubber feet, or the DT20-M which includes surface mounting ears (and no power supply).
Thanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection. The DT20-M version ships with surface mounting ears for visually unobtrusive installation. An optional rack-mount kit is available for installation of up to two DT units in a 1U 19″ slot onstage or at FOH. The DT20 is compatible with any of our digital mixers that can be fitted with a Dante card. It is also compatible with Dante equipped 3rd party hardware.
Key Features
- Dual Combo Inputs: Two balanced combo XLR/TRS inputs that accept microphone or line-level signals
- Local Preamp Control: Physical analog gain control (0 to +55dB) and a -20dB pad switch for the line inputs, located directly on the unit
- Phantom Power: Global +48V phantom power with a dedicated LED indicator for powering condenser microphones
- High-Resolution Audio: Supports high-fidelity 48kHz and 96kHz Dante sample rates
- Network & Compatibility: Fully AES67 compatible, Dante Domain Manager (DDM) ready, and equipped with a rugged EtherCon connector for reliable network linkage
